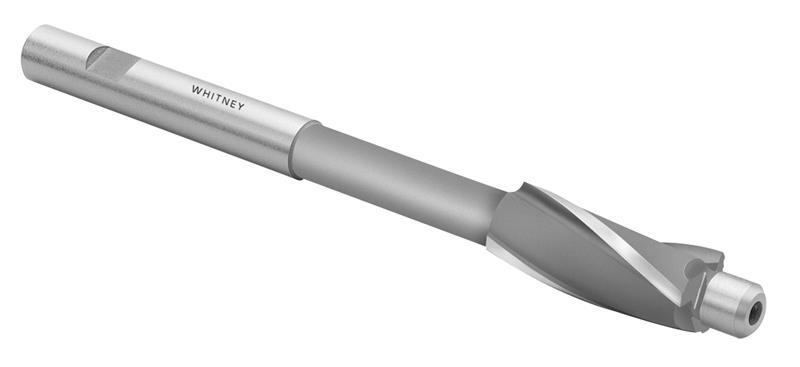

#4 Screw Size HSS Solid Pilot Cap Screw Counterbore - .1120 in. Pilot Dia.
- Item Code: CBSP01981M42
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Cap Screw Counterbores - Inch
Solid Pilot
Made in USA
Features
Back To Top- M42 Cobalt
- Weldon Shank
- 3-Flute Rugged Free Cutting Design
Tech Specs
Back To Top| UPC | 648672205295 |
|---|---|
| Shank Diameter | 1/4" |
| Decimal Cutting Diameter | 0.1980" |
| Pilot Diameter Tolerance | +0", -0.0005" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Material | High Speed Steel |
| Number of Teeth | 3 |
| OD Tolerance | +0.002", -0" |
| Pilot Diameter Decimal | 0.1120" |
| Shank Type | Weldon |
| Tooth Configuration | 20 deg. Right Hand Helix |
| Metric Cutting Diameter | 5.00 mm |
| Brand | Whitney Tool |
| Coating/Finish | None |
| Overall Length (Inch) | 3" |
