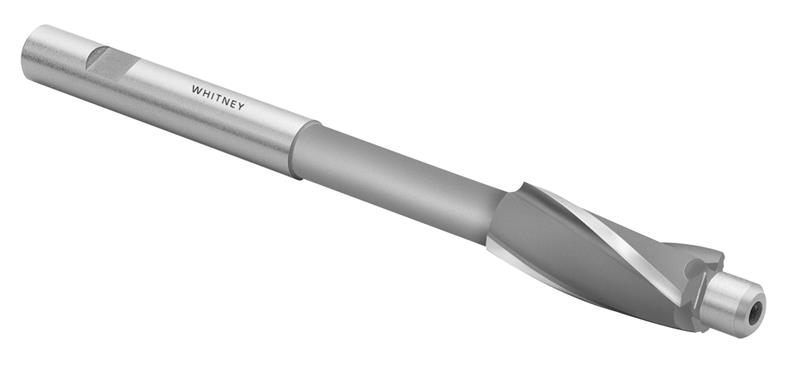

#10 Screw Size HSS Solid Pilot Cap Screw Counterbore - .2040 in. Pilot Dia.

  • Item Code: CBSP03322
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Cap Screw Counterbores - Inch

Solid Pilot

Made in USA

Features Tech Specs

Features

Back To Top
    • High Speed Steel
    • Weldon Shank
    • 3-Flute Rugged Free Cutting Design

Tech Specs

Back To Top
UPC 648672105380
Decimal Cutting Diameter 0.3320"
Metric Cutting Diameter 8.4328 mm
Pilot Diameter Decimal 0.2040"
Brand Whitney Tool
Overall Length (Inch) 3-1/2"
Pilot Diameter Tolerance +0", -0.0005"
Tooth Configuration 20 deg. Right Hand Helix
Shank Type Weldon
Number of Teeth 3
Shank Diameter Tolerance +0", -0.0005"
OD Tolerance +0.002", -0"
Shank Diameter 3/8"
Coating/Finish None
Material High Speed Steel
