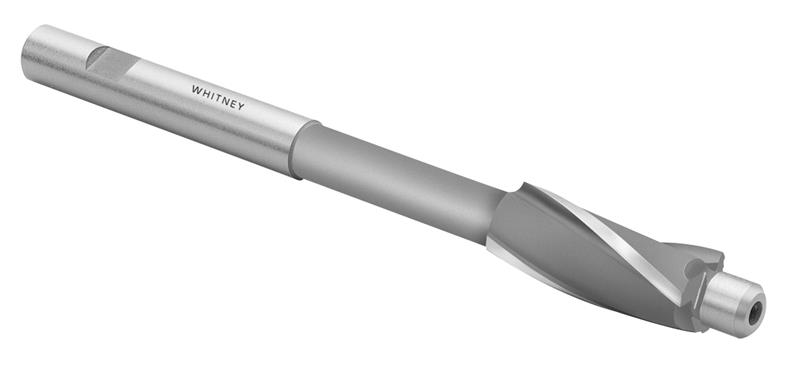

3/8 in. Screw Size M42 Cobalt Solid Pilot Cap Screw Counterbore - .3750 in. Pilot Dia.
- Item Code: CBSP05931M42
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Cap Screw Counterbores - Inch
Solid Pilot
Made in USA
Features
Back To Top- M42 Cobalt
- Weldon Shank
- 3-Flute Rugged Free Cutting Design
Tech Specs
Back To Top| UPC | 648672205455 |
|---|---|
| Pilot Diameter Decimal | 0.3750" |
| Brand | Whitney Tool |
| Material | Cobalt |
| Metric Cutting Diameter | 15.0622 mm |
| Tooth Configuration | 20 deg. Right Hand Helix |
| OD Tolerance | +0.002", -0" |
| Pilot Diameter Tolerance | +0", -0.0005" |
| Coating/Finish | None |
| Shank Diameter Tolerance | +0", -0.0005" |
| Number of Teeth | 3 |
| Overall Length (Inch) | 6" |
| Shank Type | Weldon |
| Decimal Cutting Diameter | 0.5930" |
| Shank Diameter | 1/2" |
