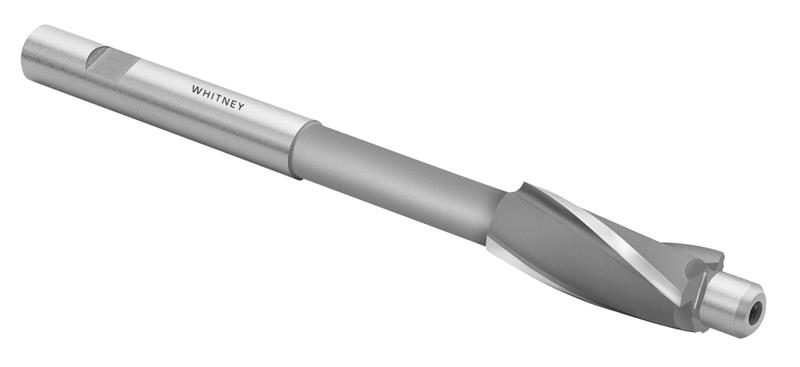

3/8 in. Screw Size M42 Cobalt Solid Pilot Cap Screw Counterbore - .4060 in. Pilot Dia.

  • Item Code: CBSP05933M42
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Cap Screw Counterbores - Inch

Solid Pilot

Made in USA

Features Tech Specs

Features

Back To Top
    • M42 Cobalt
    • Weldon Shank
    • 3-Flute Rugged Free Cutting Design

Tech Specs

Back To Top
Overall Length (Inch) 6"
UPC 648672205479
Brand Whitney Tool
Tooth Configuration 20 deg. Right Hand Helix
Material Cobalt
Decimal Cutting Diameter 0.5930"
Shank Diameter Tolerance +0", -0.0005"
Number of Teeth 3
Shank Type Weldon
OD Tolerance +0.002", -0"
Pilot Diameter Tolerance +0", -0.0005"
Coating/Finish None
Metric Cutting Diameter 15.0622 mm
Pilot Diameter Decimal 0.4060"
Shank Diameter 1/2"
