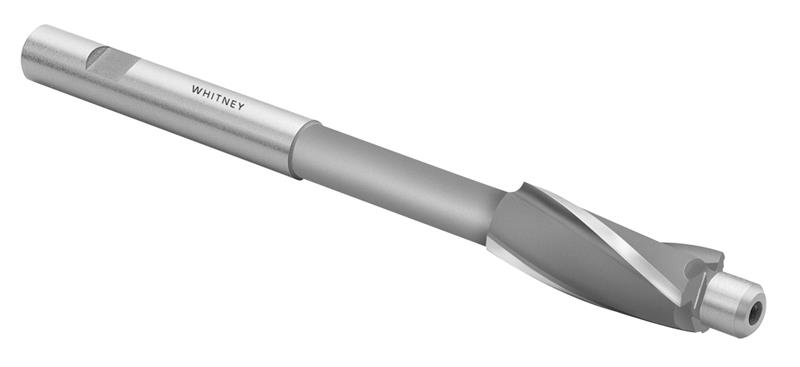

12mm Screw Size HSS Solid Pilot Cap Screw Counterbore - 13.0mm Pilot Dia.

  • Item Code: CBSP20130
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Cap Screw Counterbores - Metric

Solid Pilot

Made in USA

Features Tech Specs

Features

Back To Top
    • High Speed Steel
    • Weldon Shank
    • 3-Flute Rugged Free Cutting Design

Tech Specs

Back To Top
UPC 648672105694
Pilot Diameter Metric 13.00 mm
Overall Length (Inch) 6"
Tooth Configuration 20 deg. Right Hand Helix
Shank Diameter Tolerance +0", -0.0005"
Material High Speed Steel
Number of Teeth 3
OD Tolerance +0.002", -0"
Shank Type Weldon
Metric Cutting Diameter 20.00 mm
Brand Whitney Tool
Coating/Finish None
Shank Diameter 1/2"
Pilot Diameter Tolerance +0", -0.0005"
