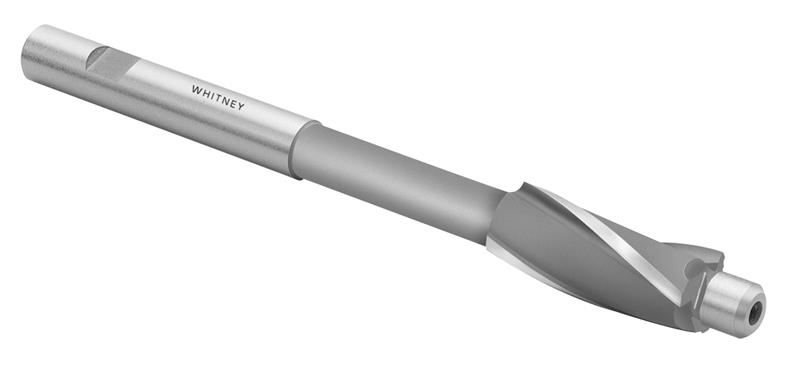

20mm Screw Size HSS Solid Pilot Cap Screw Counterbore - 21.0mm Pilot Dia.
- Item Code: CBSP332101
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Cap Screw Counterbores - Metric
Solid Pilot
Made in USA
Features
Back To Top- High Speed Steel
- Weldon Shank
- 3-Flute Rugged Free Cutting Design
Tech Specs
Back To Top| UPC | 648672105939 |
|---|---|
| Metric Cutting Diameter | 33.00 mm |
| Pilot Diameter Metric | 21.00 mm |
| Coating/Finish | None |
| Material | High Speed Steel |
| Tooth Configuration | 20 deg. Right Hand Helix |
| Number of Teeth | 3 |
| OD Tolerance | +0.002", -0" |
| Shank Type | Weldon |
| Brand | Whitney Tool |
| Overall Length (Inch) | 10" |
| Pilot Diameter Tolerance | +0", -0.0005" |
| Shank Diameter | 1" |
| Shank Diameter Tolerance | +0", -0.0005" |
