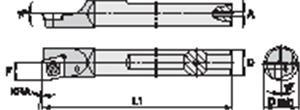

0.1880 Inch Dia. x 4.000 Inch Overall Length x 0.208 Inch Min Dia. S-Clamp RH Boring Bar

  • Item Code: CCBI18018745R-WG
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Shank Length 3.5770 Inch
Hand of Tool Right
Head Length 0.4230 Inch
Tool Length 4 Inch
Cutting Height 0.0100 Inch
Overall Length 4 Inch
Unit of Measure Inch
Head Diameter 0.1950 Inch
Axial Rake Angle 5 Degree
Brand WIDIA
Product Type Boring Bar
Shank Diameter 3/16 Inch
Grade WG
Included Angle 80
Insert Style CCBI
Lead Angle -5 Degree
Drive Size T6
Insert Shape Diamond
Min Bore Diameter 0.2080 Inch
