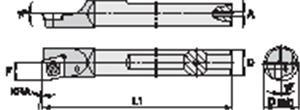

0.1880 Inch Dia. x 6.000 Inch Overall Length x 0.218 Inch Min Dia. S-Clamp RH Boring Bar

  • Item Code: CCBI18765R
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Head Length 0.4230 Inch
Insert Style CCBI
Min Bore Diameter 0.2180 Inch
Tool Length 6 Inch
Drive Size T6
Grade WG
Axial Rake Angle 5 Degree
Brand WIDIA
Cutting Height 0.0100 Inch
Lead Angle -5 Degree
Unit of Measure Inch
Hand of Tool Right
Included Angle 80
Insert Shape Diamond
Overall Length 6 Inch
Shank Diameter 3/16 Inch
Product Type Boring Bar
