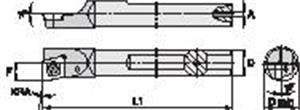

1/4 Inch Dia. x 6.000 Inch Overall Length x 0.285 Inch Min Dia. S-Clamp RH Boring Bar

  • Item Code: CCBI25065R WG
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Head Diameter 0.2640 Inch
Min Bore Diameter 0.2850 Inch
Shank Length 5.5170 Inch
Grade WG
Included Angle 80
Axial Rake Angle 5 Degree
Hand of Tool Right
Overall Length 6 Inch
Product Type Boring Bar
Insert Style CCBI
Lead Angle -5 Degree
Brand WIDIA
Cutting Height 0.0100 Inch
Unit of Measure Inch
Shank Diameter 1/4 Inch
Drive Size T6
Head Length 0.4830 Inch
Insert Shape Diamond
Tool Length 6 Inch
