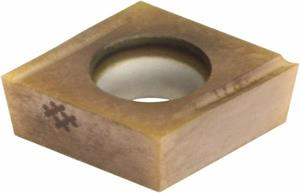

CCGT21.50.5 FX AC530U Grade Carbide Left Hand Turning Insert

  • Item Code: CCGT21.50.5LFX-AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Type Positive
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Corner Radius 0.0078 Inch
Insert Size 21.50.5
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Product Name Turning Insert
Relief Angle 7 Degree
Grade AC530U
Insert Style CCGT
Rake Angle 15 Degree
Shape Diamond
Included Angle 80
Inscribed Circle 0.2500 Inch
Brand Sumitomo
Material Solid Carbide
Chipbreaker Type FX
Thickness 0.0940 Inch
