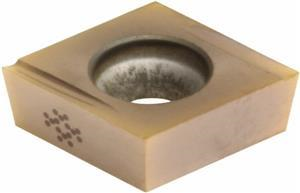

CCGT21.50.5 FX AC530U Grade Carbide Right Hand Turning Insert

  • Item Code: CCGT21.50.5RFX-AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Shape Diamond
Inscribed Circle 0.2500 Inch
Product Name Turning Insert
Coating/Finish PVD
Insert Size 21.50.5
Insert Type Positive
Thickness 0.0940 Inch
Material Solid Carbide
Brand Sumitomo
Chipbreaker Type FX
Included Angle 80
Insert Style CCGT
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0078 Inch
Grade AC530U
Rake Angle 15 Degree
Relief Angle 7 Degree
