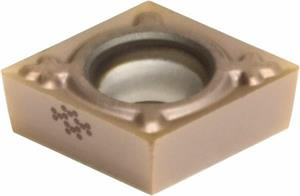

CCGT21.51 EFC AC530U Grade Carbide Turning Insert

  • Item Code: CCGT21.51EFC AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 21.51
Included Angle 80
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Insert Type Positive
Grade AC530U
Rake Angle 15 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.2500 Inch
Brand Sumitomo
Product Name Turning Insert
Relief Angle 7 Degree
Corner Radius 0.0156 Inch
Insert Style CCGT
Shape Diamond
Thickness 0.0940 Inch
Chipbreaker Type EFC
Material Solid Carbide
