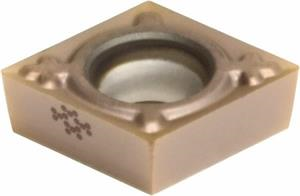

CCGT32.51 EFC AC530U Grade Carbide Turning Insert

  • Item Code: CCGT32.51EFC AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC530U
Rake Angle 15 Degree
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Number of Edges 4
Included Angle 80
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Thickness 0.0156 Inch
Chipbreaker Type EFC
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Insert Size 32.51
Brand Sumitomo
Corner Radius 0.0156 Inch
Insert Style CCGT
Shape Diamond
Relief Angle 7 Degree
