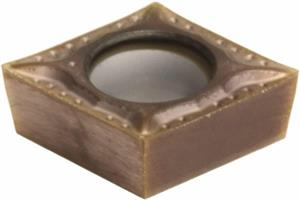

CCGT32.51 ESI AC520U Grade Carbide Turning Insert
- Item Code: CCGT32.51MESI AC520U
- Brand: Sumitomo
- Unit Size: 1
Description
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Features
Back To Top- M = Negative nose radius tolerance (-0.0001€ to -0.0004€)
Tech Specs
Back To Top| Chipbreaker Type | ESI |
|---|---|
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel |
| Coating/Finish | PVD |
| Thickness | 0.0156 Inch |
| Number of Edges | 4 |
| Corner Radius | 0.0156 Inch |
| Grade | AC520U |
| Insert Size | 32.51 |
| Insert Style | CCGT |
| Shape | Diamond |
| Material | Solid Carbide |
| Mounting Hole Diameter | 0.1372 Inch |
| Rake Angle | 15 Degree |
| Relief Angle | 7 Degree |
| Brand | Sumitomo |
| Included Angle | 80 |
| Product Name | Turning Insert |
| Inscribed Circle | 0.3750 Inch |
| Insert Type | Positive |
