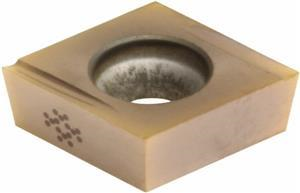

CCGT32.51 FX AC530U Grade Carbide Turning Insert

  • Item Code: CCGT32.51RFX-AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC530U
Included Angle 80
Rake Angle 15 Degree
Material Solid Carbide
Inscribed Circle 0.3750 Inch
Insert Size 32.51
Insert Type Positive
Corner Radius 0.0156 Inch
Number of Edges 4
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Thickness 0.0156 Inch
Insert Style CCGT
Shape Diamond
Brand Sumitomo
Chipbreaker Type FX
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
