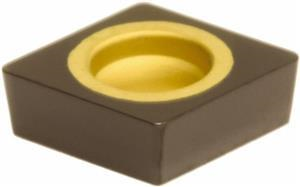

CCMA21.51 AC420K Grade Carbide Turning Insert

  • Item Code: CCMA21.51-AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0940 Inch
Number of Edges 4
Inscribed Circle 0.2500 Inch
Shape Diamond
Corner Radius 0.0156 Inch
Relief Angle 7 Degree
Brand Sumitomo
Grade AC420K
Product Name Turning Insert
Rake Angle 0 Degree
Included Angle 80
Insert Size 21.51
Mounting Hole Diameter 0.1100 Inch
Coating/Finish CVD
Insert Style CCMA
Material Solid Carbide
Insert Type Positive
