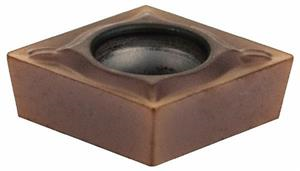

CCMT21.50.5 ESU AC520U Grade Carbide Turning Insert

  • Item Code: CCMT21.50.5ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 21.50.5
Rake Angle 8 Degree
Brand Sumitomo
Included Angle 80
Product Name Turning Insert
Insert Style CCMT
Material Solid Carbide
Chipbreaker Type ESU
Insert Type Positive
Grade AC520U
Shape Diamond
Thickness 0.0940 Inch
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.2500 Inch
Corner Radius 0.0078 Inch
Relief Angle 7 Degree
