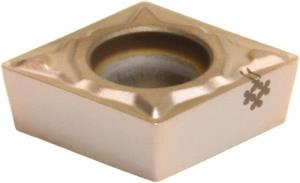

CCMT21.51 ELU T3000Z Grade Cermet Turning Insert

  • Item Code: CCMT21.51ELU T3000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Brand Sumitomo
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Insert Size 21.51
Included Angle 80
Shape Diamond
Corner Radius 0.0156 Inch
Relief Angle 7 Degree
Chipbreaker Type ESU
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Product Name Turning Insert
Rake Angle 12 Degree
Inscribed Circle 0.2500 Inch
Grade T3000Z
Insert Type Positive
Insert Style CCMT
Thickness 0.0940 Inch
