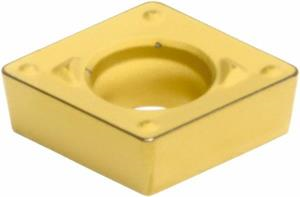

CCMT21.51 ENK AC700G Grade Carbide Turning Insert

  • Item Code: CCMT21.51ENK AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 80
Insert Type Positive
Shape Diamond
Chipbreaker Type ENK
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Product Name Turning Insert
Corner Radius 0.0156 Inch
Relief Angle 7 Degree
Brand Sumitomo
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Size 21.51
Coating/Finish Coated
Grade AC700G
Insert Style CCMT
Material Solid Carbide
Thickness 0.0940 Inch
Inscribed Circle 0.2500 Inch
