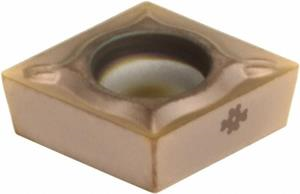

CCMT21.51 ESU AC510U Grade Carbide Turning Insert

  • Item Code: CCMT21.51ESU-AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Inscribed Circle 0.2500 Inch
Product Name Turning Insert
Included Angle 80
Insert Type Positive
Brand Sumitomo
Chipbreaker Type ESU
Thickness 0.0940 Inch
Rake Angle 8 Degree
Corner Radius 0.0156 Inch
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Shape Diamond
Insert Size 21.51
Insert Style CCMT
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC510U
Relief Angle 7 Degree
