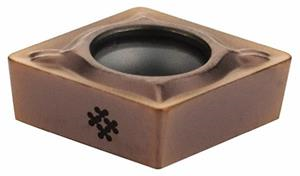

CCMT21.51 ESU AC520U Grade Carbide Turning Insert

  • Item Code: CCMT21.51ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 80
Insert Style CCMT
Material Solid Carbide
Chipbreaker Type ESU
Inscribed Circle 0.2500 Inch
Insert Size 21.51
Rake Angle 8 Degree
Brand Sumitomo
Product Name Turning Insert
Thickness 0.0940 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Relief Angle 7 Degree
Grade AC520U
Insert Type Positive
Corner Radius 0.0156 Inch
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Shape Diamond
