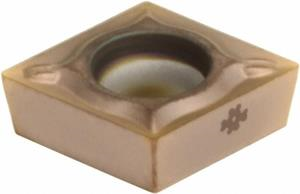

CCMT21.51 ESU AC530U Grade Carbide Turning Insert

  • Item Code: CCMT21.51ESU AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC530U
Included Angle 80
Product Name Turning Insert
Insert Size 21.51
Shape Diamond
Chipbreaker Type ESU
Insert Type Positive
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Insert Style CCMT
Material Solid Carbide
Thickness 0.0940 Inch
Brand Sumitomo
Corner Radius 0.0156 Inch
Rake Angle 8 Degree
Relief Angle 7 Degree
Inscribed Circle 0.2500 Inch
