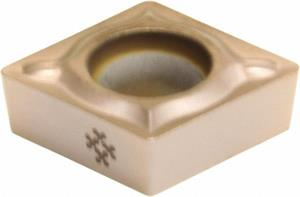

CCMT21.51 ESU T3000Z Grade Cermet Turning Insert

  • Item Code: CCMT21.51ESU T3000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Insert Style CCMT
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Grade T3000Z
Insert Type Positive
Included Angle 80
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.2500 Inch
Brand Sumitomo
Insert Size 21.51
Product Name Turning Insert
Rake Angle 8 Degree
Relief Angle 7 Degree
Corner Radius 0.0156 Inch
Shape Diamond
Thickness 0.0940 Inch
