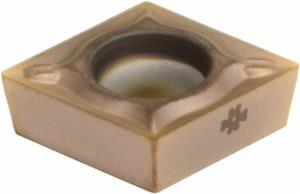

CCMT32.51 ESU AC6030M Grade Carbide Turning Insert

  • Item Code: CCMT32.51ESU AC6030M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Corner Radius 0.0156 Inch
Insert Size 32.51
Shape Diamond
Chipbreaker Type ESU
Included Angle 80
Insert Style CCMT
Material Solid Carbide
Grade AC6030M
Product Name Turning Insert
Number of Edges 4
Coating/Finish CVD
Rake Angle 8 Degree
Relief Angle 7 Degree
