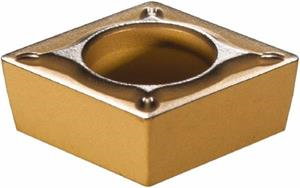

CCMT32.51 ESU AC630M Grade Carbide Turning Insert

  • Item Code: CCMT32.51ESU AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Coating/Finish CVD
Insert Style CCMT
Number of Edges 4
Material Solid Carbide
Relief Angle 7 Degree
Grade AC630M
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Type Positive
Corner Radius 0.0156 Inch
Included Angle 80
Insert Size 32.51
Shape Diamond
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Thickness 0.0156 Inch
