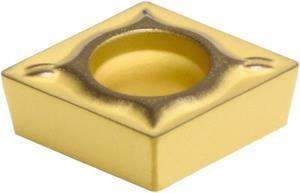

CCMT32.51 ESU AC820P Grade Carbide Turning Insert

  • Item Code: CCMT32.51ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Style CCMT
Material Solid Carbide
Coating/Finish CVD
Corner Radius 0.0156 Inch
Number of Edges 4
Relief Angle 7 Degree
Shape Diamond
Inscribed Circle 0.3750 Inch
Insert Size 32.51
Grade AC820P
Mounting Hole Diameter 0.1732 Inch
Thickness 0.0156 Inch
Insert Type Positive
Brand Sumitomo
Chipbreaker Type ESU
Included Angle 80
Product Name Turning Insert
