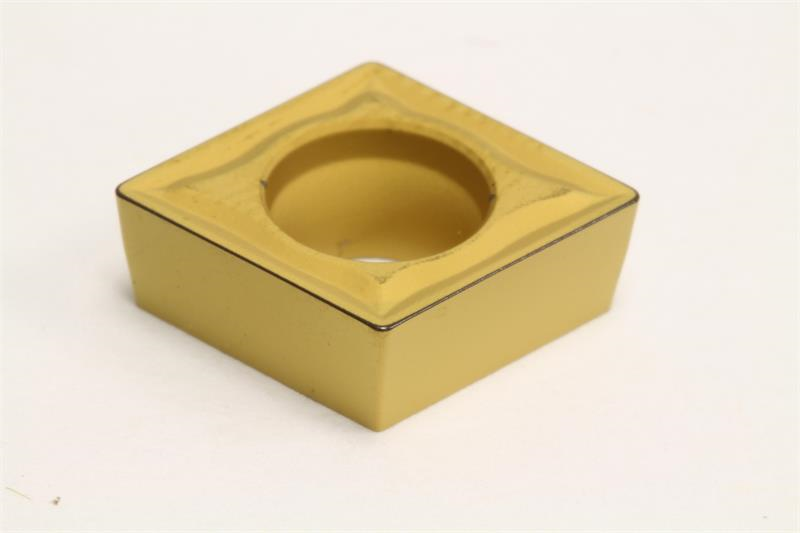

CCMT32.52 EMU AC820P Grade Carbide Turning Insert

  • Item Code: CCMT32.52EMU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Insert Size 32.52
Coating/Finish CVD
Insert Style CCMT
Material Solid Carbide
Chipbreaker Type EMU
Inscribed Circle 0.3750 Inch
Insert Type Positive
Number of Edges 4
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Included Angle 80
Shape Diamond
Brand Sumitomo
Grade AC820P
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Rake Angle 0 Degree
