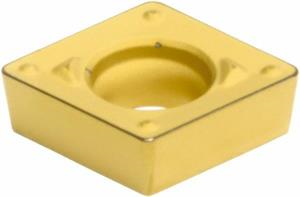

CCMT32.52 ENK AC700G Grade Carbide Turning Insert

  • Item Code: CCMT32.52ENK AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Coating/Finish Coated
Grade AC700G
Shape Diamond
Insert Style CCMT
Material Solid Carbide
Included Angle 80
Rake Angle 8 Degree
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Chipbreaker Type ENK
Corner Radius 0.0313 Inch
Number of Edges 4
Insert Size 32.52
Product Category Cutting Tools
Relief Angle 7 Degree
