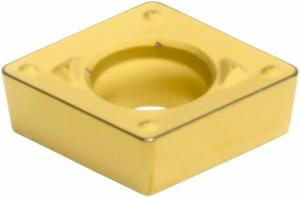

CCMT32.52 ENK AC830P Grade Carbide Turning Insert

  • Item Code: CCMT32.52ENK AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style CCMT
Material Solid Carbide
Included Angle 80
Mounting Hole Diameter 0.1732 Inch
Thickness 0.0156 Inch
Shape Diamond
Rake Angle 8 Degree
Grade AC830P
Insert Type Positive
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Insert Size 32.52
Relief Angle 7 Degree
Chipbreaker Type ENK
Corner Radius 0.0313 Inch
Number of Edges 4
