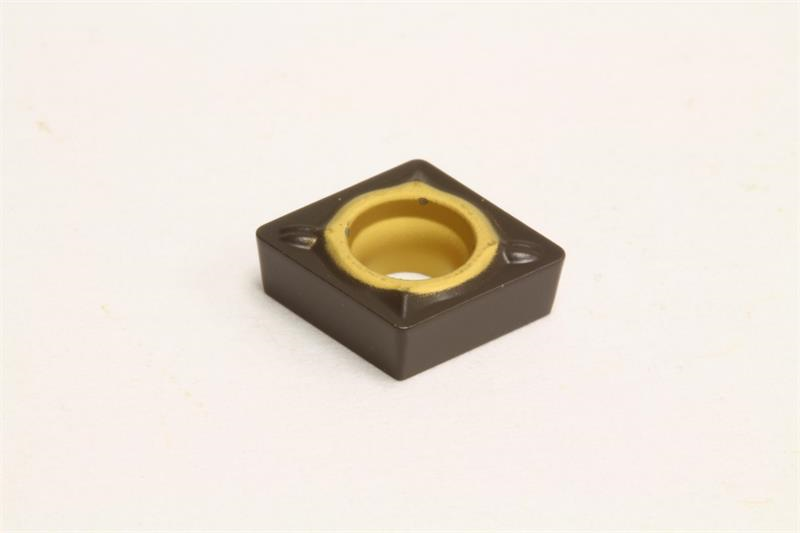

CCMT32.52 ESU AC415K Grade Carbide Turning Insert

  • Item Code: CCMT32.52ESU AC415K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Relief Angle 7 Degree
Chipbreaker Type ESU
Grade AC415K
Insert Style CCMT
Inscribed Circle 0.3750 Inch
Rake Angle 8 Degree
Insert Type Positive
Brand Sumitomo
Corner Radius 0.0313 Inch
Number of Edges 4
Shape Diamond
Included Angle 80
Insert Size 32.52
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Thickness 0.0156 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
