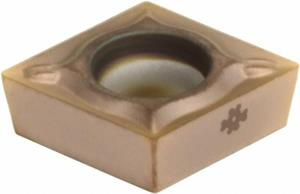

CCMT32.52 ESU AC510U Grade Carbide Turning Insert

  • Item Code: CCMT32.52ESU AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Grade AC510U
Included Angle 80
Insert Style CCMT
Material Solid Carbide
Corner Radius 0.0313 Inch
Number of Edges 4
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Thickness 0.0156 Inch
Shape Diamond
Insert Size 32.52
Rake Angle 8 Degree
Relief Angle 7 Degree
