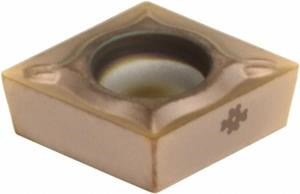

CCMT32.52 ESU AC6030M Grade Carbide Turning Insert

  • Item Code: CCMT32.52ESU AC6030M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style CCMT
Material Solid Carbide
Coating/Finish CVD
Number of Edges 4
Relief Angle 7 Degree
Rake Angle 8 Degree
Mounting Hole Diameter 0.1732 Inch
Thickness 0.0156 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Corner Radius 0.0313 Inch
Insert Size 32.52
Brand Sumitomo
Chipbreaker Type ESU
Included Angle 80
Product Name Turning Insert
Shape Diamond
Grade AC6030M
Inscribed Circle 0.3750 Inch
Insert Type Positive
