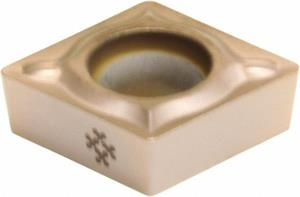

CCMT32.52 ESU T2000Z Grade Cermet Turning Insert

  • Item Code: CCMT32.52ESU-T2000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Rake Angle 8 Degree
Brand Sumitomo
Chipbreaker Type ESU
Included Angle 80
Inscribed Circle 0.3750 Inch
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Insert Style CCMT
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Product Name Turning Insert
Grade T2000Z
Shape Diamond
Coating/Finish Cermet
Corner Radius 0.0313 Inch
Number of Edges 4
Insert Size 32.52
Relief Angle 7 Degree
