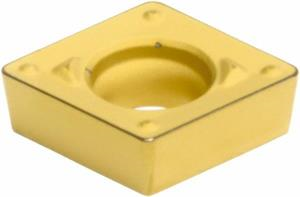

CCMT431 ENK AC830P Grade Carbide Turning Insert

  • Item Code: CCMT431ENK-AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Chipbreaker Type ENK
Coating/Finish CVD
Number of Edges 4
Shape Diamond
Insert Style CCMT
Material Solid Carbide
Corner Radius 0.0156 Inch
Insert Size 431
Relief Angle 7 Degree
Brand Sumitomo
Mounting Hole Diameter 0.2165 Inch
Product Name Turning Insert
Included Angle 80
Rake Angle 8 Degree
Grade AC830P
Insert Type Positive
Thickness 0.1875 Inch
