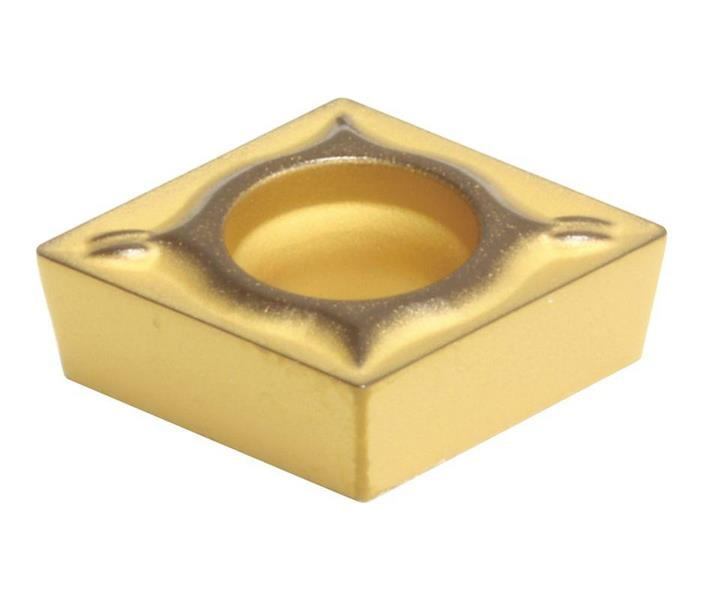

CCMT432 ENK AC420K Grade Carbide Turning Insert

  • Item Code: CCMT432ESU-AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Inscribed Circle 0.5000 Inch
Coating/Finish CVD
Number of Edges 4
Shape Diamond
Insert Style CCMT
Material Solid Carbide
Corner Radius 0.0313 Inch
Included Angle 80
Relief Angle 7 Degree
Brand Sumitomo
Chipbreaker Type ESU
Grade AC420K
Mounting Hole Diameter 0.2165 Inch
Product Name Turning Insert
Insert Size 432
Rake Angle 8 Degree
Insert Type Positive
Thickness 0.1875 Inch
