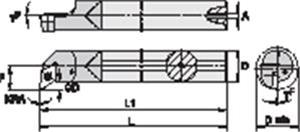

5/16 Inch Dia. x 6.000 Inch Overall Length x 0.423 Inch Min Dia. S-Clamp RH Boring Bar

  • Item Code: CCPI31265R
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Shank Length 5.4560 Inch
Grade WG
Head Length 0.5440 Inch
Drive Size T6
Insert Style CCPI
Product Type Boring Bar
Tool Length 6 Inch
Axial Rake Angle 0 Degree
Shank Diameter 5/16 Inch
Included Angle 45
Lead Angle -5 Degree
Overall Length 6 Inch
Hand of Tool Right
Insert Shape Diamond
Brand WIDIA
Cutting Height 0.0100 Inch
Min Bore Diameter 0.4230 Inch
Unit of Measure Inch
