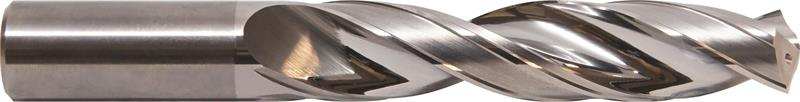

13/64 Diameter, 2-Flute, 5X, Coolant Fed, High Performance Cyclone Double Margin Drill (DIN6537L)
- Item Code: CDACR2031
- Brand: MA Ford
- Unit Size: 1
Description
Cyclone - Series CDA
Aluminum 5X 2 Flute Coolant Fed Drill
Features
Back To Top- Lower Thrust Point Geometry
- Enhanced Double Margin Design
Tech Specs
Back To Top| Major Diameter Decimal | 0.2031" |
|---|---|
| Major Diameter Fractional | 13/64" |
| Brand | MA Ford |
| Material | Solid Carbide |
| Series | Cyclone |
| Shank Diameter | 6 |
| Angle | 140°-142° |
| Length of Flute | 1.732 |
| Helix | 30° |
| Overall Length | 3.23 |
| Neck Length | 1.378 |
| Point Length | 0.031 |
