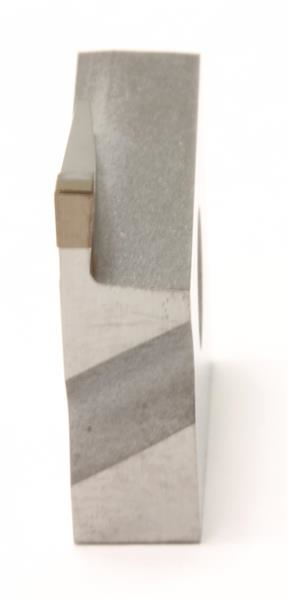

CGA1504200 BN2000 Grade, 0.0787 Inch Cutting Width, PCBN Style, Right Hand Single Grooving Insert

  • Item Code: CGAR1504200 BN2000
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond.

Tech Specs

Back To Top
Cutting Width 0.0787 Inch
Insert Size 1504200
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Grade BN2000
Insert Style CGA
Product Name Grooving Insert
Coating/Finish CBN
Diameter (Decimal) 0.6250 Inch
Brand Sumitomo
Corner Radius 0.0078 Inch
Material PCBN
Hand of Insert Right
Max Depth of Cut 0.1378 Inch
