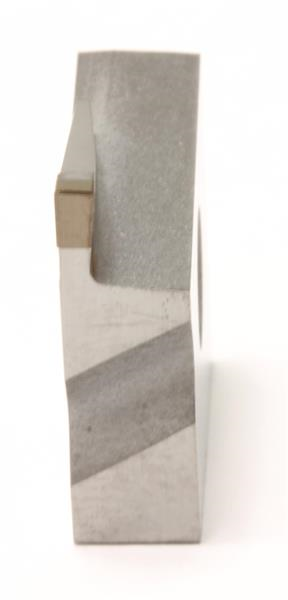

GCA1504400 BN2000 Grade, 0.1575 Inch Cutting Width, PCBN Style, Right Hand Single Grooving Insert

  • Item Code: CGAR1504400 BN2000
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond.

Tech Specs

Back To Top
Insert Size 1504400
Max Depth of Cut 0.1969 Inch
Product Name Grooving Insert
Cutting Width 0.1575 Inch
Brand Sumitomo
Coating/Finish CBN
Diameter (Decimal) 0.6250 Inch
Grade BN2000
Hand of Insert Right
Insert Style CGA
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Corner Radius 0.0078 Inch
Material PCBN
