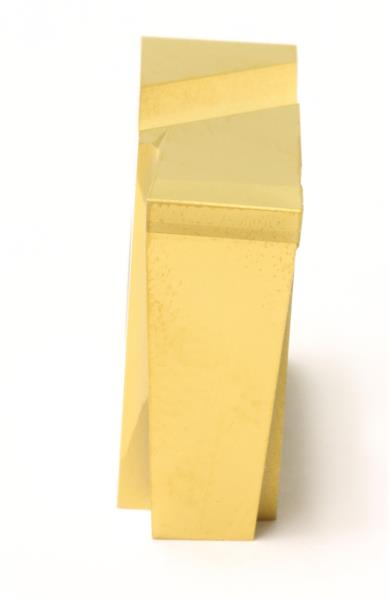

CGA4125 BNC30G Grade, 0.125 Inch Cutting Width, PCBN Style, Right Hand Single Grooving Insert

  • Item Code: CGAR4125-BNC30G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond.

Tech Specs

Back To Top
Cutting Width 0.1250 Inch
Coating/Finish CBN
Hand of Insert Right
Insert Size 4125
Corner Radius 0.0078 Inch
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Material PCBN
Grade BNC30G
Insert Style CGA
Brand Sumitomo
Max Depth of Cut 0.1969 Inch
Diameter (Decimal) 0.6250 Inch
Product Name Grooving Insert
