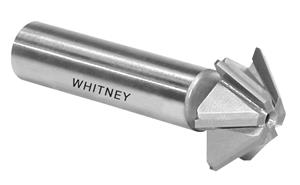

1 in. x 45 deg. Uncoated Carbide Tipped Single Angle Chamfer Milling Cutter

  • Item Code: CH10045C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutter - Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672300983
Angle Width 5/16"
Overall Length (Inch) 2-1/2"
Included Angle 45
Metric Cutting Diameter 25.40 mm
Shank Diameter Tolerance +0", -0.0005"
Brand Whitney Tool
Fractional Cutting Diameter 1"
OD Tolerance 0.015"
Material Carbide Tipped
Shank Diameter 1/2"
Number of Teeth 6
Shank Type Weldon
Width Tolerance 0.015"
Coating None
Style Single Angle
Angle Tolerance 1/4 deg.
Tooth Configuration Straight
