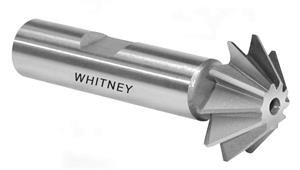

1-1/2 in. x 45 deg. TiN Coated HSS Single Angle Chamfer Milling Cutter
- Item Code: CH15045T
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Single Angle Chamfer Milling Cutters - High Speed Steel
Made in USA
Features
Back To Top- Right Hand Cut
- Weldon Shank
- 45 deg. and 60 deg. Angles
Tech Specs
Back To Top| Angle Width | 1/2" |
|---|---|
| UPC | 648672153251 |
| Width Tolerance | 0.015" |
| Angle Tolerance | 1/4 deg. |
| Number of Teeth | 12 |
| Coating | TiN |
| Overall Length (Inch) | 2-3/4" |
| Brand | Whitney Tool |
| Fractional Cutting Diameter | 1-1/2" |
| Style | Single Angle |
| Material | High Speed Steel |
| Metric Cutting Diameter | 38.10 mm |
| Shank Type | Weldon |
| Shank Diameter | 3/4" |
| Shank Diameter Tolerance | +0", -0.0005" |
| Tooth Configuration | Straight |
| Included Angle | 45 |
| OD Tolerance | 0.015" |
