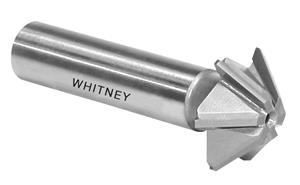

1-1/2 in. x 60 deg. Uncoated Carbide Tipped Single Angle Chamfer Milling Cutter

  • Item Code: CH15060C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutter - Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672301034
Coating None
Style Single Angle
OD Tolerance 0.015"
Shank Diameter 3/4"
Fractional Cutting Diameter 1-1/2"
Material Carbide Tipped
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
Width Tolerance 0.015"
Brand Whitney Tool
Angle Width 5/8"
Included Angle 60
Overall Length (Inch) 2-3/4"
Shank Type Weldon
Angle Tolerance 1/4 deg.
Number of Teeth 8
Metric Cutting Diameter 38.10 mm
