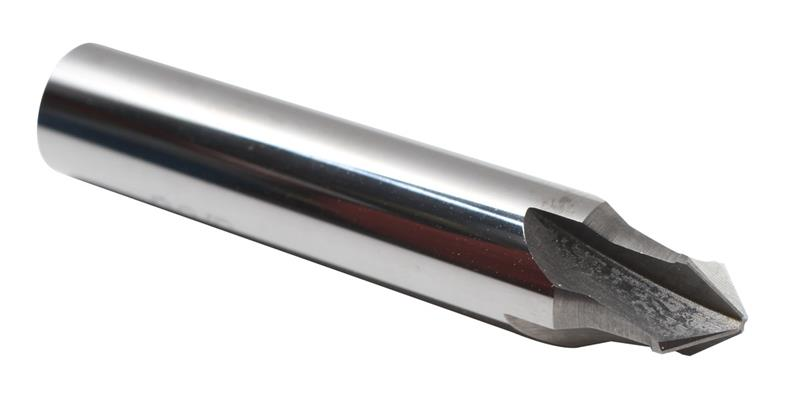

1/4 in. x 45 deg. Uncoated Solid Carbide Single Angle Chamfer Milling Cutter

  • Item Code: CH2545C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutters - Solid Carbide

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672306008
Number of Teeth 4
Width Tolerance 0.015"
Angle Tolerance 1/4 deg.
Coating None
Style Single Angle
Tooth Configuration Straight
Brand Whitney Tool
Included Angle 45
Material C2 Micrograin Carbide
Overall Length (Inch) 2"
Angle Width 3/32"
Shank Diameter 1/4"
OD Tolerance 0.015"
Metric Cutting Diameter 6.35 mm
Shank Type Straight
Fractional Cutting Diameter 1/4"
Shank Diameter Tolerance +0", -0.0005"
