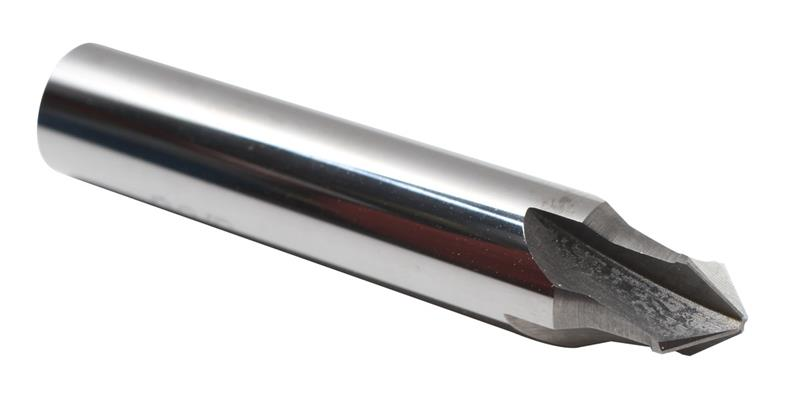

1/4 in. x 60 deg. Uncoated Solid Carbide Single Angle Chamfer Milling Cutter

  • Item Code: CH2560C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutters - Solid Carbide

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
Angle Width 5/32"
UPC 648672306039
Brand Whitney Tool
Material C2 Micrograin Carbide
Style Single Angle
Angle Tolerance 1/4 deg.
Coating None
Included Angle 60
Number of Teeth 4
Width Tolerance 0.015"
Metric Cutting Diameter 6.35 mm
Overall Length (Inch) 2"
OD Tolerance 0.015"
Shank Diameter 1/4"
Shank Type Straight
Fractional Cutting Diameter 1/4"
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
