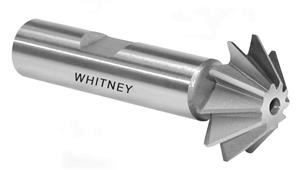

1/4 in. x 60 deg. TiN Coated HSS Single Angle Chamfer Milling Cutter
- Item Code: CH2560T
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Single Angle Chamfer Milling Cutters - High Speed Steel
Made in USA
Features
Back To Top- Right Hand Cut
- Weldon Shank
- 45 deg. and 60 deg. Angles
Tech Specs
Back To Top| UPC | 648672157532 |
|---|---|
| Fractional Cutting Diameter | 1/4" |
| Included Angle | 60 |
| OD Tolerance | 0.015" |
| Shank Diameter | 3/8" |
| Tooth Configuration | Straight |
| Angle Tolerance | 1/4 deg. |
| Coating | TiN |
| Shank Diameter Tolerance | +0", -0.0005" |
| Material | High Speed Steel |
| Number of Teeth | 6 |
| Shank Type | Weldon |
| Width Tolerance | 0.015" |
| Metric Cutting Diameter | 6.35 mm |
| Overall Length (Inch) | 2-1/8" |
| Angle Width | 5/32" |
| Brand | Whitney Tool |
| Style | Single Angle |
