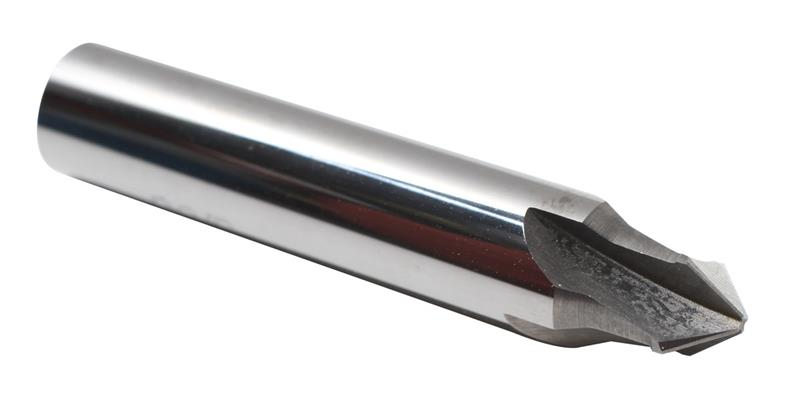

5/16 in. x 45 deg. Uncoated Solid Carbide Single Angle Chamfer Milling Cutter

  • Item Code: CH3145C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutters - Solid Carbide

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672306015
Fractional Cutting Diameter 5/16"
Brand Whitney Tool
Metric Cutting Diameter 7.94 mm
Number of Teeth 4
Shank Type Straight
OD Tolerance 0.015"
Angle Width 1/8"
Shank Diameter 3/8"
Tooth Configuration Straight
Angle Tolerance 1/4 deg.
Width Tolerance 0.015"
Coating None
Material C2 Micrograin Carbide
Shank Diameter Tolerance +0", -0.0005"
Style Single Angle
Included Angle 45
Overall Length (Inch) 2"
