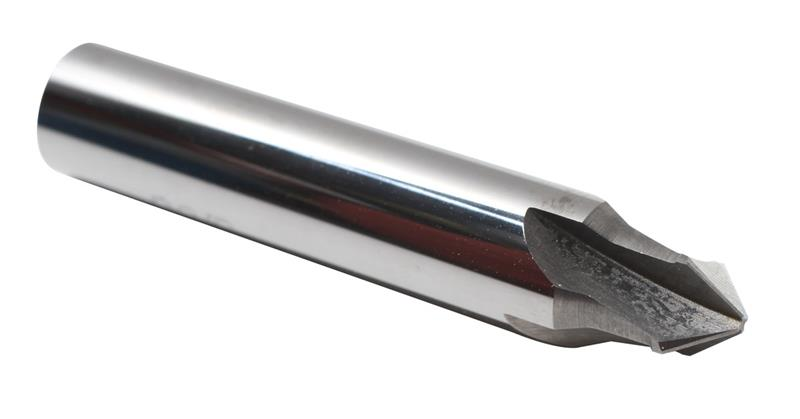

7/32 in. x 60 deg. Uncoated Solid Carbide Single Angle Chamfer Milling Cutter

  • Item Code: CH3160C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutters - Solid Carbide

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672306046
Material C2 Micrograin Carbide
Style Single Angle
Shank Diameter 3/8"
Shank Diameter Tolerance +0", -0.0005"
Tooth Configuration Straight
Width Tolerance 0.015"
Angle Width 7/32"
Coating None
Brand Whitney Tool
Fractional Cutting Diameter 5/16"
Shank Type Straight
Overall Length (Inch) 2"
Included Angle 60
Metric Cutting Diameter 7.94 mm
Number of Teeth 4
OD Tolerance 0.015"
Angle Tolerance 1/4 deg.
