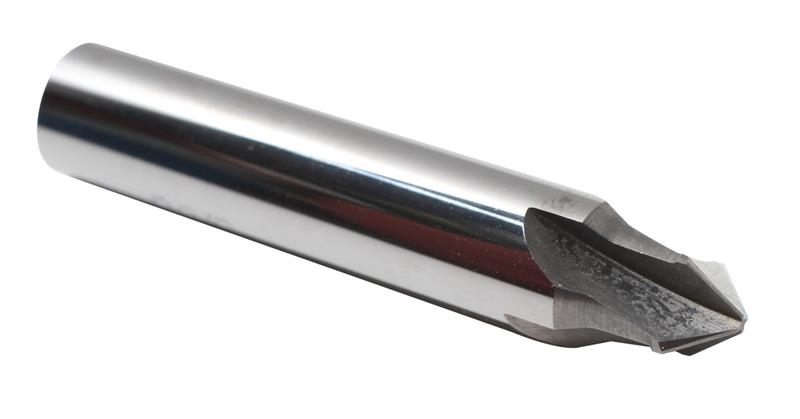

7/32 in. x 60 deg. TiN Coated Solid Carbide Single Angle Chamfer Milling Cutter
- Item Code: CH3160CT
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Single Angle Chamfer Milling Cutters - Solid Carbide
Made in USA
Features
Back To Top- Straight Tooth
- General Purpose Carbide Grade
- Weldon Shank
Tech Specs
Back To Top| UPC | 648672356089 |
|---|---|
| Fractional Cutting Diameter | 5/16" |
| Included Angle | 60 |
| Brand | Whitney Tool |
| Metric Cutting Diameter | 7.94 mm |
| Number of Teeth | 4 |
| OD Tolerance | 0.015" |
| Shank Type | Straight |
| Material | C2 Micrograin Carbide |
| Shank Diameter Tolerance | +0", -0.0005" |
| Style | Single Angle |
| Angle Tolerance | 1/4 deg. |
| Shank Diameter | 3/8" |
| Tooth Configuration | Straight |
| Width Tolerance | 0.015" |
| Coating | TiN |
| Overall Length (Inch) | 2" |
