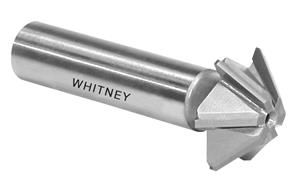

1/2 in. x 60 deg. TiN Coated Carbide Tipped Single Angle Chamfer Milling Cutter

  • Item Code: CH5060CT
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Single Angle Chamfer Milling Cutters - Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • Straight Tooth
    • General Purpose Carbide Grade
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672356102
Shank Diameter Tolerance +0", -0.0005"
Angle Tolerance 1/4 deg.
OD Tolerance 0.015"
Coating TiN
Included Angle 60
Shank Diameter 3/8"
Tooth Configuration Straight
Overall Length (Inch) 2-1/8"
Fractional Cutting Diameter 1/2"
Material Carbide Tipped
Metric Cutting Diameter 12.70 mm
Shank Type Weldon
Width Tolerance 0.015"
Brand Whitney Tool
Number of Teeth 4
Style Single Angle
